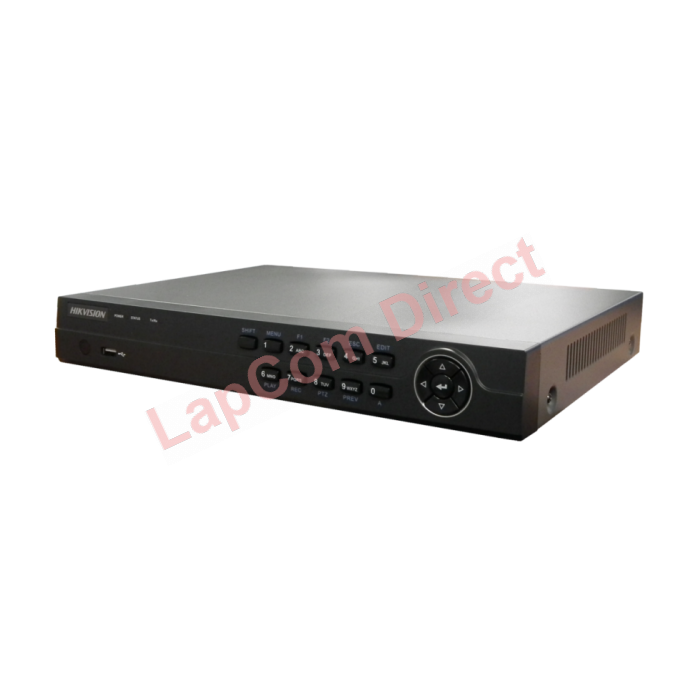

Hikvision 4CHN PoE NVR DS-7604NI-K1/4P

Input bandwidth 40Mbps
1 x SATA Interface
Decoding capability 1-ch 4K / 4-ch 1080P
HDMI output uo to 4K
4 Ports PoE

This new Hikvision DS-7604NI-K1/4P NVR is a 4CH Plug and Play Network Video Recorder (NVR) with 4 x Ports PoE with a Incoming bandwidth of 40Mbps and a Outgoing Bandwidth of 80Mbps.

The Hikvision DS-7604NI-K1/4P NVR (Network Video Recorder) is a new generation recorder developed by Hikvision independently. Combined with multiple advanced technologies, such as audio and video decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other devices to form a comprehensive surveillance system

Hikvision DS-7604NI-K1/4P NVR key features:

Professional and Reliable

Dual-OS design to ensure high reliability of system running
ANR technology to enhance the storage reliability when the network is disconnected

HD Input

H.265/H.264/H.264+ video formats
Connectable to the third-party network cameras
4 IP cameras can be connected
Recording at up to 8 MP resolution
Supports live view, storage, and playback of the connected camera at up to 8 MP resolution

HD Output

HDMI/VGA outputs provided
HDMI Video output at up to 4K (3840 × 2160) resolution

HD Storage

1 SATA interfaces connectable for recording and backup
Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format

HD Transmission

1 self-adaptive 10M/100Mbps network interface
4 independent PoE network interfaces are provided

Various Applications

Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
VCA detection alarm is supported
Instant playback for assigned channel during multi-channel display mode
Smart search for the selected area in the video; and smart playback to improve the playback efficiency

Specifications
Alarm Input/Output	N/A
Available Models	DS-7604NI-E1, DS-7604NI-E1-4P, DS-7608NI-E2, DS-7608NI-E2-8P, DS-7616NI-E2, DS-7616NI-E2-8P, DS-7616NI-E2, DS-7616NI-E2-16P
Analogue Channels	N/A
Audio Channels	1-ch, RCA (Linear, 1 KΩ)
Audio Output	1-ch, RCA (Linear, 1kΩ)
CVBS	N/A
Dimensions	315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
DVD-RW	N/A
Frame Rate	N/A
HDMI/VGA Output	Yes
Incoming Bandwidth	40Mbps
Indoor/Outdoor	N/A
IP Video Input	4-ch
Lan Ports	N/A
Monitor Outputs	HDMI & VGA
Network Interface	1 RJ-45 100 Mbps full-duplex Ethernet interface
Operating Conditions	-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
PoE Switch (Built In)	4xPort PoE
Power Consumption	≤ 10 W (without enabling PoE)
Power over Ethernet	4x PoE Ports
Power Supply	48 VDC
RAID Support	N/A
Recording Resolution	8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CI F/CIF/QCIF
Resolution	HDMI: 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA: 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
RS-485 Keyboard Support	N/A
Serial Interface	N/A
Smart Search	N/A
Storage	Up to 6TB capacity for each disk 1 SATA interface for 1 HDD
Synchronous Playback	N/A
Two-way Audio Input	1-ch, RCA (2.0 Vp-p, 1kΩ)
USB interface	Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Video Compression	N/A
Weight	≤ 1 Kg
